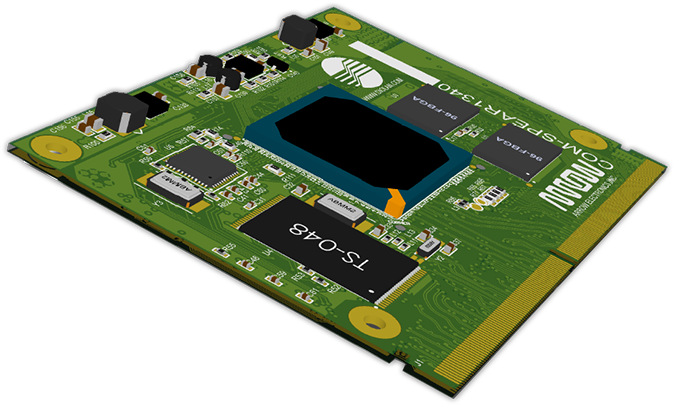

The COM-SPEAR1340 Computer-on-Module board can serve as a building block in wide variety of embedded applications. This system on module board provides access to most of the peripherals available at ST SPEAR1340 system-on-chip device.
The COM-SPEAR1340 computer-on-module is based on the powerful dual-core ARM Cortex A9 system-on-chip processor with advanced multimedia capabilities. It has built-in high performance 2D/3D GPU, hardware video encoder and decoder and video input parallel port, with alternate configuration for 4 camera interfaces.
In addition to the standard set of peripherals (LCD, Gigabit Ethernet, PCIe 2.0, 3Gb/s Serial ATA, memory card interfaces, etc.) COM-SPEAR1340 system on module provides access to 4 camera interfaces, 2 USB 2.0 Host ports + 1 USB 2.0 OTG port (with integrated PHY) and has support for second LCD (LVDS) in some of the modifications.
The COM-SPEAR1340 computer-on-module can interface various peripherals through I2C interface. You can use USB to I2C adapters to debug the I2C interface.
Open source Linux and Android operating systems, tools and development environments, ported and optimized for ARM and ST40-based platforms are freely available at spear1340.com web site. Both COM-SPEAR1340 and SBC-SPEAR1340 schematics can be downloaded directly from the spear1340.com web site and used as a reference design during you custom board development.
| Processor | SPEAr1340 - Dual-core Cortex A9 HMI embedded MPU |
|---|---|
| 32+32 KB L1 caches per core, with parity check | |
| Shared 512 KB L2 cache | |
| Accelerator coherence port (ACP) | |
| Memory |
DDR3 up to 8Gbit
|
| NAND FLASH 16Gbit | |
| Display | LCD display controller, incl.support for Full HD, 1920 x 1080, 60 Hz, 24 bpp |
| Optional second display with LVDS interface | |
| High-perf. 2D/3D GPU, up to 1080p | |
| Hardware video decoder: multistandard up to 1080p, JPEG | |
| Resistive touchscreen interface | |
| Video Input | Video input parallel port, with alternate configuration for 4 x camera interfaces |
| Hardware video encoder: H.264 up to 1080p, JPEG | |
| Ethernet | Gigabit / Fast Ethernet port (external GMII/RGMII/MII/RMII PHY) |
| Optional PHY assembled on the computer-on-module board | |
| Connectivity | 2 x USB 2.0 Host ports (integrated PHY) |
| 1 x USB 2.0 OTG port (integrated PHY) | |
| 2 x I2C bus controllers, master/slave |
